NOVAcompactPortable, compact flue gas analyser for emission monitoring and combustion control

Very compact and extremely rugged gas analyser
Fully equipped for all kind of adjustment and monitoring tasks at combustions
Intuitively and comfortable to use

Basic-Equipment

Longlife Oxygen (O2)-Sensor (0 … 21%)
CO-Sensor (0 … 4.000/overload 10.000 ppm)
Fresh air purging for CO-sensor-protection
Flue gas probe with 250mm probe length and 2,2 m sampling line
Speedprinter, built-in
Lithium-Ion battery (approx. 10 hours operation)
3,5“ TFT colour display and LED-lit keypad
Mini-USB-socket and SD card slot
Differential pressure- und differential temperature measurement
Very robust, compact aluminium framed case (423x240x176mm)

Options

NO-measurement

0...1.000/5.0000 ppm

CO-measurement (H2 compensated)

0...10.000/20.000ppm

CO(high)-measurement

0...4.000/ 20.000 ppm

NO measurement (NOx calculated)

0 ... 1.000 ppm, overload up to 5.000 ppm

NO2-measurement

0...200/1.0000 ppm

SO2-measurement

0...2.000/5.0000 ppm

Gas sampling probe handle Type F

for exchangeable tubes

Exchangeable probe tube Type F, 180 or 300mm

from 300 mm up to 2.000 mm length

Exchangeable probe tube, with sinter filter

Ø 10mm x 750...1.500 mm, with sintered metal filter

AUX-socket

for connecting additional transmitters (detector probe, etc.)

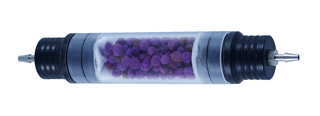

CO-sensor protection by purafil filter

recommended for use at CHP engines

CO-sensor protection by separate purging pump

required if both, CO regular and CO high or very high, are installed

Gas cooler

Peltier, low energy, high efficiency and condensate draining pump

Lithium-ion battery w/ double capacity

recommended for use with gas cooler

Automatic mode/measurement

incl. data logging, user definable

Accessories

Additional compartment for NOVAcompact case

attachable to standard case

Shoulder strap for case

Combustion air temperature probe, 300 mm

w/ PTFE cone and 2,7m cable

Pitot tube, L-type, with temperature measurement

100 x Ø 3mm

Pitot tube, S-type, with temperature measurement

500 x Ø 8mm, with 28mm protection tube,
TIG welding for 0...1.000° operating temperature

Technical Data

Measuring range

O2	0 ... 21%
CO (H2 compensated)	0 ... 10.000/20.000 ppm
NO	0 ... 1.000/5.000 ppm
NO2	0 ... 200/1.000 ppm
NO(x)	0 ... 1.000/5.000 ppm
SO2	0 ... 2.000/5.000 ppm
Fluegas temperature	0 ... 650°

Dimensions and other data

Data storage	internally as well as on SD-Card
Data transfer	via USB or Bluetooth
Electr. connection transmitter	more sensors via AUX-input
Display	3,5" colour-TFT
Sample gas flow monitoring	sample flow monitoring with alarm on display
Housing	metal, fixed in rugged aluminium framed case
Battery capacity	10 hours continuous operation
Weight	approx. 6,8 kg
