VARIOluxxPortable stack gas emission analyser for long time measurements of industrial combustions (Special edition for China: "VARIOplus-NEW")

O2CO/H2COCO2[Translate to Englisch:] [Translate to Englisch:] NONO2SO2H2SH2[Translate to Englisch:] [Translate to Englisch:] [Translate to Englisch:]

Outstanding benefits:

  • precise measuring technique by means of infrared (3-gas) and electrochemical cells (6-gas)
  • most suitable for precise low Nox measurements and other toxic gas emissions measurement according
    to new MCP Directive 2015/2193 for medium combustion plants with rated power <50 MW
  • all important interfaces are available, such as Ethernet (LAN), WLAN, Bluetooth, USB, RS485, 8 channel analog Outputs
  • remote wireless Control using a smartphone and MRU4u app
VARIOluxx
VARIOluxx suitcase
TÜV-Logo
VARIOluxx
VARIOluxx suitcase
Basic-Equipment
  • Integrated, efficient electrical gas cooler (Peltier cooler) with automatic condensate draining pump
  • Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement
  • Strong, regulated sample gas pump and easy replaceable, effective PTFE filter
  • Zero gas (ambient air) inlet nozzle and separate passive VENT outlet nozzle for sample gas
  • O2 measurement included, using long-life electrochemical cell
  • Stack gas temperature measurement up to 1.200°C (optional up to 1.700°C)
  • Differential pressure or stack gas pressure +/- 100 hPa
  • Combustion air temperature up to 500°C, using adequate NiCrNi probes
  • Automatic measurement incl. data logging function
  • Large fuel type list incl. self choose fuels with user definable parameters
  • Complete combustion calculation using country specific fuel type list
  • O2 referencing (normalisation) to user settable value
  • Automatic internal test and control of soft- and hardware functions
  • Linux OS & large, high-contrast and backlit 7" (840x480) graphical display
  • Display with easy, intuitive touch panel and all measured data at one sight
  • Graphical data visualization, csv or pdf reporting file
  • Data transfer to PC over LAN Ethernet (RJ45 socket) or USB
  • 8 channel analog output 4-20mA and 4 channel analog input 4-20mA
  • Universal analogue input (AUX socket) with 0-10 V or 4-20 mA signal or K-thermocouple or RS485
  • 10.000 data of internal data storage and large data storage on external 4GB USB-stick (MRU design)
  • Universal power supply: mains 90-264 Vac/ 105 W (up to 600W with 5m heated sampling line)
  • 1 hour Li-Ion 48 Wh battery stand-by operation, with power supply for gas cooler and heated probe filter
  • Modern, rugged aluminium enclosure with rubber molded impact protection
Options

CO-measurement (H2 compensated)


0...10.000/20.000ppm

CO

NO-measurement


0...1.000/5.0000 ppm

NO

NO2-measurement


0...200/1.0000 ppm

NO2

SO2-measurement


0...2.000/5.0000 ppm

SO2

H2S-measurement


0...500/2.0000 ppm

H2S

H2 - measurement


0...1.000/2.000 ppm

H2

CO(very high)-measurement


0...4,00/10,00%

CO

3-gas NDIR bench CO/CO2/CH4


CO 0...10%
CO2 0...40%
CH4 0...4%

Gas sampling probe handle


for exchangeable tubes (without filter and with 1,5 m triple sampling hose)

RS 485 interface


with modbus RTU protocol for wired far distance data transfer

Additional LiIon battery 12V/48Wh


for additional 1h mains free stand-by operation

Accessories

Heat deflector shield


Ø 150mm for Ø 10mm tubes

Combustion air temperature probe, 300 mm


w/ PTFE cone and 2,7m cable

Pitot tube, L-type, with temperature measurement


100 x Ø 3mm

Exchangeable probe tube, Type TR


from 300 ... 1.500 mm, stainless or inconel steel

Probe tube holder 1/2"-12mm


for firm and tight probe fixation on gas pipe

Darcy tubes, Type S


for flow velocity measurement, incl. temperature measurement, 300, 1.000 or 1.500mm length

USB to Bluetooth converter set


for wireless data transfer

USB to WLAN converter


dongle for wireless data transfer

WLAN/USB printer


with LiIon battery, 80mm paper width and battery charger

"Pelicase" style transport case


suitable for flight transportation

Service- and cleaning kit VARIOluxx


filter, silicone grease, air bulb, cloth, seals, etc.

PTFE main filter


set of 5 pieces

Glass wool filter material


1 carton=50x30g for 750 filtering processes

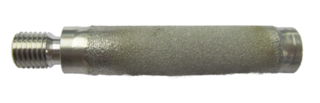

Sintered metal filter 3µ


for F-type gas sampling probe

Printer paper 80mm width


thermo paper, pack of 5 rolls

Exchangeable probe tube Type F


from 300 mm up to 2.000 mm length

Technical Data
Measuring range
O2 (electrochemical) 0 ... 25,00 %
CO low (electrochemical) 0 ... 500,0 ppm
CO (H2 compensated) (electrochemical) 0 ... 10.000 ppm / overload up to 20.000 ppm
CO very high (electrochemical) 0 ... 2,00 % / overload up to 10,00 %
CO (infrared) 0 ... 3.000 ppm / overload up to 30.000 ppm
CO (infrared) 0 ... 1,00 % / overload up to 10,00 %
CO2 (infrared) 0 ... 5,00 % / overload up to 40,00 %
HC (CH4) (infrared) 0 ... 3.000 / overload up to 10.000 ppm
HC (C3H8) (infrared) 0 ... 1.000 ppm / overload up to 10.000 ppm
HC (CH4) (infrared) 0 ... 1,00 % / overload up to 4,00 %
NO low (electrochemical) 0 ... 300,0 ppm
NO (electrochemical) 0 ... 1.000 ppm / overload up to 5.000 ppm
NO2 low (electrochemical) 0 ... 100,0 %
NO2 (electrochemical) 0 ... 200 ppm / overload up to 1.000 ppm
SO2 low (electrochemical) 0 ... 100,0 ppm
SO2 (electrochemical) 0 ... 2.000 ppm / overload up to 5.000 ppm
H2S low (electrochemical) 0...50 ppm / overload up to 500 ppm
H2S (electrochemical) 0 ... 2.000 ppm / overload up to 5.000 ppm
H2 (electrochemical) 0 ... 1.000 ppm / overload up to 2.000 ppm
Fluegas temperature 0 ... 1.200 °C
Combustion air temperature 0 ... 500 °C
Ambient air temperature 0 .. 100 °C
Differential pressure -120 ... + 120 hPa
Flow measurement 3 ... 100 m/s
Dimensions and other data
Operating system LINUX
Display 7“ TFT (800 x 480 px) colour display, backlit, with touch operation
Data storage 10.000 data sets internal and external USB-Stick
Interfaces Ethernet, Bluetooth, WLAN, RS485
Operating temperature +5 ... +50 °C ; RH up to 95 % not condensing
Storage temperature -20 ... +50 °C
Internal power supply Li-Ion , 48 Wh, for appr. 1 hr „stand-by“ (optional additional battery, 48 Wh Li-Ion)
External power supply 86 ... 265 Vac / 47 ... 63 Hz / 105 W (up to 600 W with heated sampling line)
Protection IP20 (or IP42 inside transport case)
Dimensions (W x H x D) 430 x 290 x 150 mm
Weight appr. 7,5 kg (with minimal configuration)
