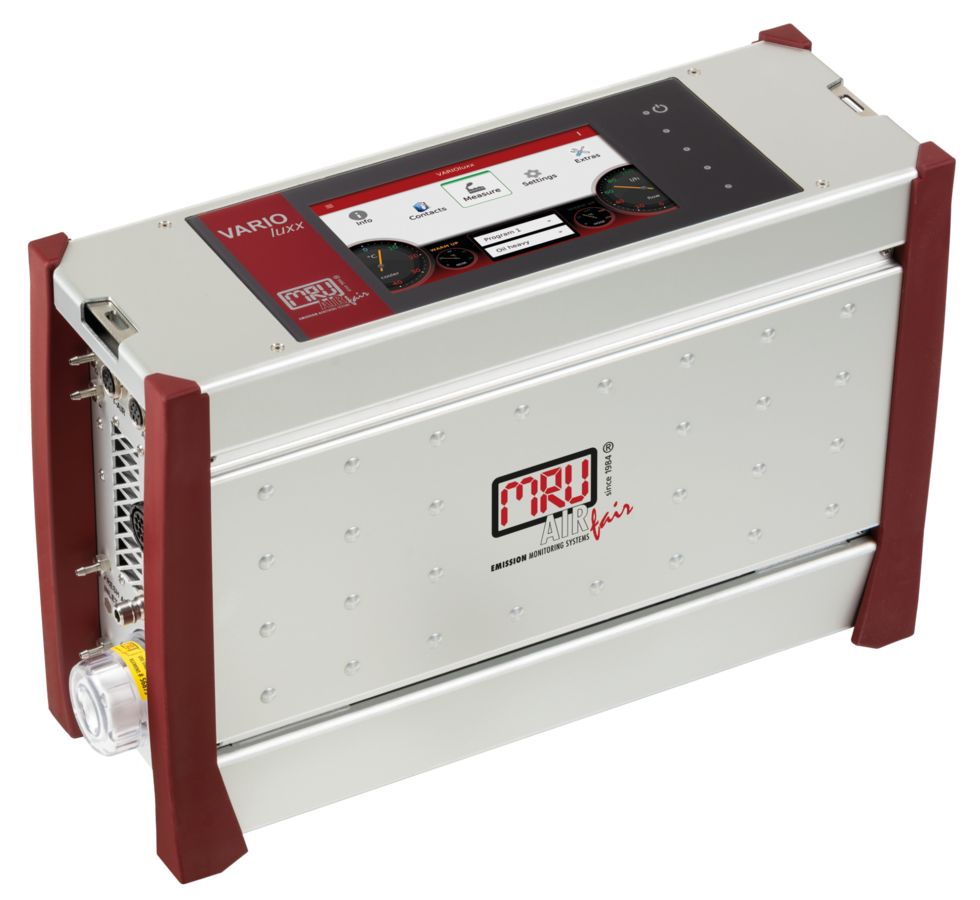

VARIOluxx Syngas Portable syngas analyser for long-term measurements of special gases (syngas)

Outstanding benefits

Within most compact space one electrochemical O2 sensor (or one paramagnetic O2 sensor) as well as an infrared bench (CO+CO2+CH4) work jointly to generate precise measuring results
All important interfaces are available, such as Ethernet (LAN), WLAN, Bluetooth, USB, RS485, 8 channel analog Outputs
Remote control via smartphone or tablet using VCN server via LAN/WLAN (no remote control via MRU4u app)

Applications

Basic-Equipment

O2 sensor (either electrochemical longlife sensor or paramagnetic sensor)
Integrated, electrical gas cooler (Peltier) and automatic condensate draining pump
Strong sample gas pump and external accessible particulate Teflon filter
Automatic zeroing by means of 3-way solenoid valve, user programmable
Internal sample flow monitoring with display and alarm
Linux OS and large baklit 800 x 480 colour display, with touch and swipe technigue
With universal analog input (AUX socket) for external transmitter connection
Data memory for approx. 10.000 measurements, optional USB Stick for additional data storage
Automatic interval measurement program
Data-visualization and evaluation software MRU4win
Universal power supply: mains 90-265 Vac /105 W
Internal Li-Ion battery for 1 hours mains free operation
Automatic selftest and control of soft- and hardware functions
Modern, rugged aluminium enclosure with rubber molded impact protection

Options

3-gas NDIR bench CO/CO2/CH4

CO 2.000ppm ... 10%
CO2 0...40%
CH4 2.000ppm ... 4%

O2 measurement, paramagnetic

0...25 %

O2 (long-life) measurement

0...25%

H2S-measurement

0...500, overload up to 2.000 ppm

H2 measurement TCD

thermal conductivity detector, 0...10 up to 100%

Low sample gas flow

adjustable between 10 l/h to 30 l/h

Additional LiIon battery 12V/48Wh

for additional 1h mains free stand-by operation

RS 485 interface

with modbus RTU protocol for wired far distance data transfer

Accessories

WLAN/USB printer

with LiIon battery, 80mm paper width and battery charger

"Pelicase" style transport case

suitable for flight transportation

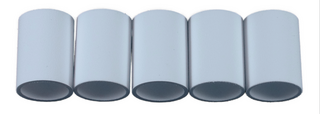

Printer paper 80mm width

thermo paper, pack of 5 rolls

Quick connector assembly

with 5 m unheated Viton sampling line

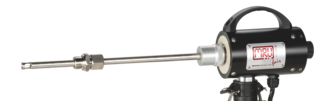

Industrial probe head, HPI, heated

with integrated heater, 160°C temperature regulated by analyser

Syngas washing device

portable, for removal of tar or heavy hydrocarbons from sample gas

Service- and cleaning kit VARIOluxx

filter, silicone grease, air bulb, cloth, seals, etc.

PTFE main filter

set of 5 pieces

Technical Data

Measuring range

CO	(NDIR) 0 ... 10,00 % / 100,00 %
CO2	(NDIR) 0 ... 10,00 % / 100,00 %
O2	(electrochemical) 0 ... 25,00 %
CH4	(NDIR) 0 ... 10,00 % / 100,00 %
O2	(paramagnetic) 0 ... 25,00 %
H2S	(electrochemical) 0 ... 2.000 ppm / overload up to 5.000 ppm
H2	(TCD) 0...1,0/100%

Dimensions and other data

Data storage	10.000 data sets internal and external USB-Stick
Display	7“ TFT (800 x 480 px) colour display, backlit, with touch and swipe operation
Weight	approx. 7,5 kg (with minimal configuration)
Operating system	LINUX
Interfaces	Ethernet, Bluetooth, WLAN, RS485
Operating temperature	+5 ... +45 °C ; RH up to 95 % not condensing
Storage temperature	-20 ... +50 °C
Internal power supply	86 ... 265 Vac / 47 ... 63 Hz / 105 W (up to 600 W with heated sampling line)
Power supply	86 ... 265 Vac / 47 ... 63 Hz / 105 W (up to 600 W with heated sampling line)
Protection	IP20 (or IP42 inside transport case)
Dimensions	(W x H x D) 430 x 290 x 150 mm
