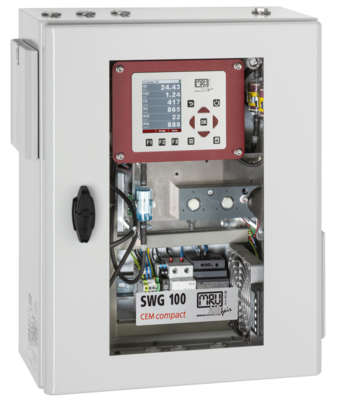

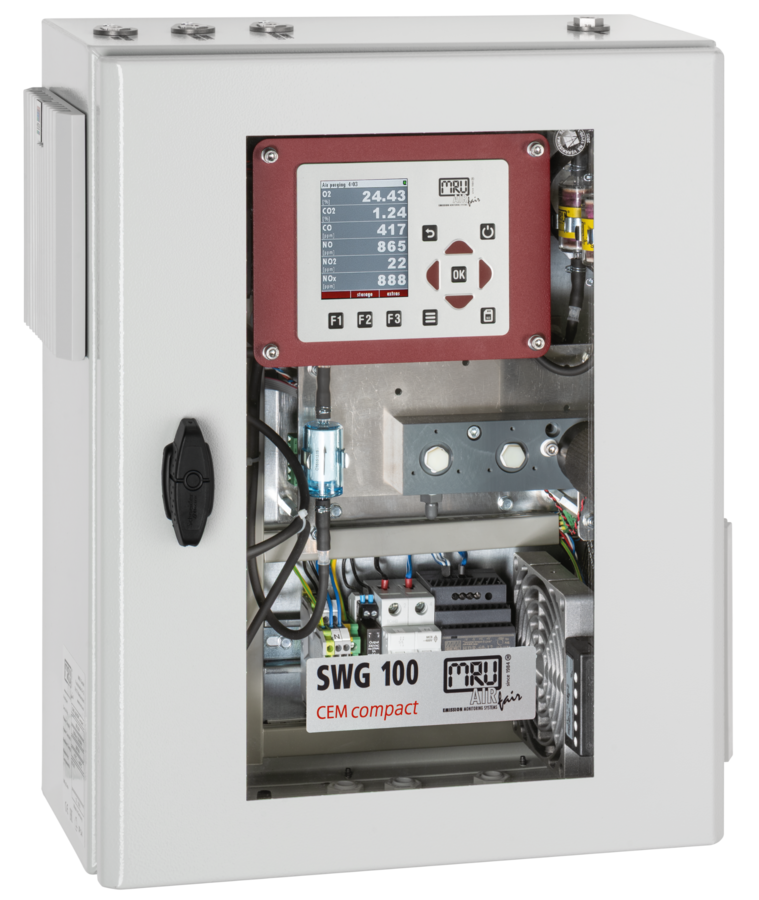

SWG 100 CEMcompact Compact Multigas-Analyser for combustion analysis

use of most modern NDIR-technology
optional O₂-measurement with electrochemical or paramagnetical sensor
automatic zero point calibration with clean ambient air using separate calibration gas inlet port

Basic-Equipment

single heat exchanger Peltier gas cooler with automatic condensate draining pump
up to max. 3 electrochemical gas sensors (ECS) for measurement of O₂, CO, NO
max. 1 sample gas inlet when using heated probe (HD and HD-GW)
mx. 2 sample gas inlets when using unheated PTFE sample line
optional use of a paramagnetical O₂-measurement
connection of up to max. 2 heated, self-regulating probes HD and HD-GW for sampling of dusty gases
internal gas flow monitoring
alarm at clogged probe or internal filter
gas sampling from low pressure –100 mbar up to +50 mbar possible
regulated sample gas pump with sample gas flow monitoring and alarm
filtering of acid gases to protect the internal gas flow sensor
solenoid valve for automatic zero calibration with clean ambient air
solenoid valve for manual calibration
device operation via TFT-colour display, key pad and RS485-interface (Modbus RTU)
password protected, intuitive operation incl. diagnosis software
IP54 steel housing 500 x 433 x 210 mm (W x H x D), with corrosion-resistant laquer RAL 7035

Technical Data

Measuring range

Dimensions and other data

Display	3,5" TFT color and backlit display
Weight	approx. 20 kg
Operating temperature	+5°C…+45°C standard, +5°C…+55°C with Vortec cooler, -10°C…+45°C with cabinet heater
Protection	IP 54
Power supply	Universal 100-240 Vac/47-63 Hz/200 W
Dimensions	(H x W X D) 500x 433x 210 mm for wall or rack mounting
