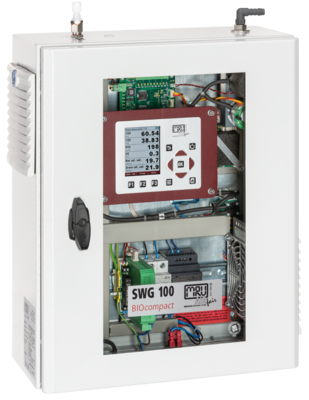

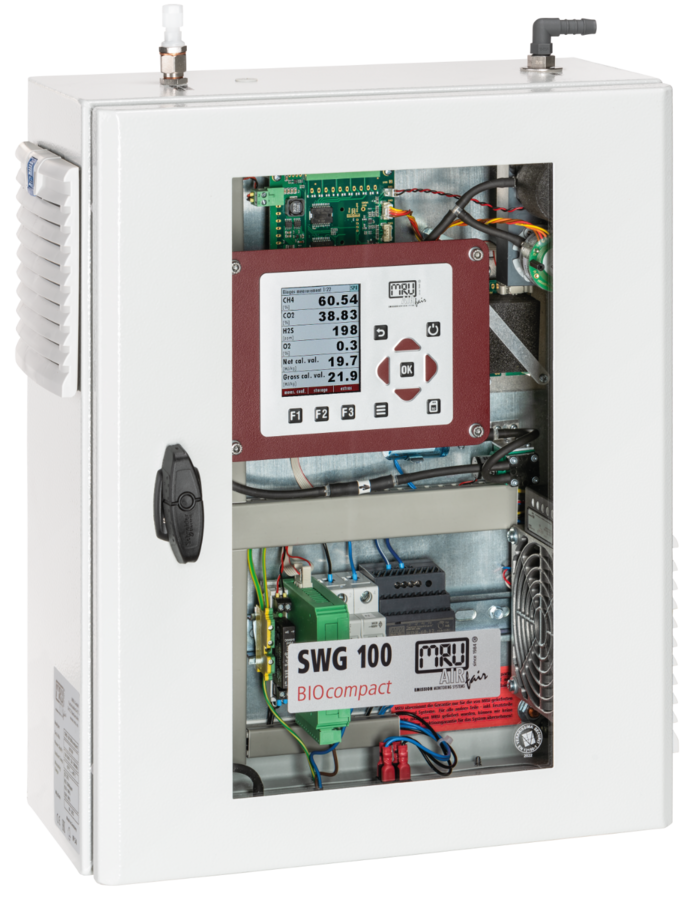

SWG 100 BIOcompact Stationary biogas measuring system for discontinuous measurements

CH4 CO2 O2 H2

Cost effective stationary biogas analyser designed for:

  • Discontinuous measurement, user settable up to 24 measurements per 24 hours
  • Use in the harsh industrial environment of combined heat and power (CHP) engine gas monitoring
  • Accurate measurements, incl. plug & play pre-calibrated sensors
  • Up to 2 sites monitoring (times sharing technique)

The analyser samples dry biogas, pressurized or low pressure gas and can be used for single or dual point sampling of:

  • Cogeneration heat and power engines (CHP)
  • Municipal or industrial waste water treatement sites
  • Small scale AD plants with dry fermentation
  • Landfill sites
Basic-Equipment
  • Plug & play, pre-calibrated sensors
  • Safety in use with gas flow restrictor orifice at gas inlet and ventilation
  • Efficient sample gas preparation for fast and reliable measurements
  • Sampling from low suction up to high pressure gas
  • No dilution of the sample gas, neither use of compressed air is required
  • Discontinuous measurement, user settable up to 24 measurements per 24 hours
  • Up to 2 sites monitoring (time sharing technique) with only one analyzer
  • Data storage and event logging on SD card
  • IP 54 cabinet for use in harsh environment
  • Ready to run delivery, minimum installation work, low service downtime
  • May be installed outside or inside
Technical Data
Measuring range
CH4 0 ... 100% (infrared NDIR)
CO2 0 ... 100% (infrared NDIR)
O2 0 ... 25 % (electrochemical)
H2S low 0...50/250ppm
H2S high 0...5.000/10.000ppm
H2 0...1.000/2.000ppm
Calculated values
Calorific value 0 ... 50 MJ/m3; MJ/kg
Dimensions and other data
Display 3,5" TFT colour display with backlight
Operating temperature +5 ... 45°C or -10 ... 45°C with cabinet heater
Power supply Universal 90 ... 240 Vac / 47 ... 63 Hz / 60W (360 W with cabinet heater)
Protection IP 54
Dimensions 400x500x300 mm (WxHxD) wall or rack mounting
Weight 14 kg
