Hydrogen measurement
The MRU H2-Analysers
A suitable device for every application

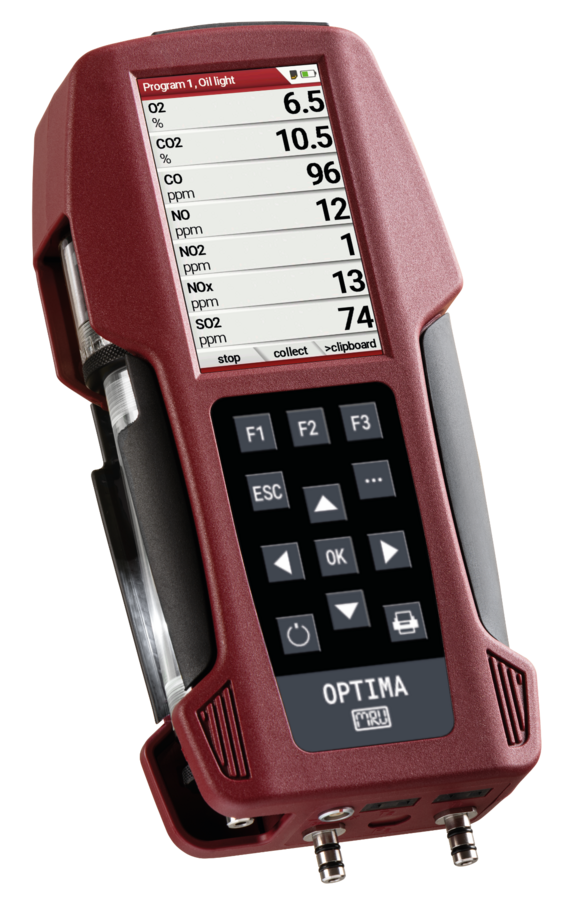

OPTIMA The slim multi talent handheld flue gas analyser using up to 7 sensors
Further development of a proven concept:
- new, high resolution 4" display for better readability and more information
- new menu design with many graphical displays
- illuminated condensate separator with optional water stop
- easy connection of Bluetooth™ printer and MRU4u App
Basic-Equipment
- exhaust gas measurement for all current fuels
- (differential-)pressure measurement up to ± 300 mbar
- temperature measurement
- leakage testing on gas pipes
- gas flow velocity and flow rate
- automatic measurement incl. CO-average calculating
- high-range CO measurement
- NOx measurement, e. g. for CHPs
- HC „sniffer“ for leak detection
- rechargeable Lithium-Ion battery for approx. 15 hours operation
Options
CO2/CxHy-measurement
0...40,00%/100...40.000ppm (NDIR)
CO2 - measurement
0...40,00 %
CO-measurement (H2 compensated)
0...10.000, overload up to 20.000ppm
CO(very high)-measurement
0...4,00, overload up to 10,00%
H2S-measurement
0...500, overload up to 2.000 ppm
NO measurement (NOx calculated)
0 ... 1.000 ppm, overload up to 5.000 ppm
NO2-measurement
0...200 overload up to 1.000 ppm
O2 (long-life) measurement
0...25%
SO2-measurement
0...2.000, overload up to 5.000 ppm
Detector probe
- Detector probe for fast leakage detection
- 1,95 m cable and flex. goose neck
- adaptable to all AUX sockets
Accessories
Exchangeable probe tubes, various lengths
100 ... 1000 mm

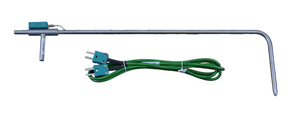

Pitot tube, L-type, with temperature measurement
100 x Ø 3mm
Pitot tube, S-type, with temperature measurement
500 x Ø 8mm, with 28mm protection tube,
TIG welding for 0...1.000° operating temperature
Smart plus adaptor
required for external probes, other than K-Type plug
Detector probe
- Detector probe for fast leakage detection
- 1,95 m cable and flex. goose neck
- adaptable to all AUX sockets
Speed printer
Infrared high speed thermal printer
Printer paper
for speedprinter
Service & Cleaning kit SPECTRA/OPTIMA7
spare filter, fuses, probe cleaning brush, silicone, duster, etc.
Large aluminium framed transport case
plenty of space for unit and accessories
Transport case Spectra/Optima
robust ABS transport case, with compartments for accessories
Technical Data
Measuring range
| CO2 | (NDIR) 0 ... 50 % |
| O2 | 0 ... 25 % (long-life, electrochemical) |
| CO | 0...10.000, overload up to 20.000ppm |
| CH4 | 100 ... 40.000 ppm |
| CO low | 0 ... 500 ppm |
| CO high | 0 ... 4,0% |
| NO | 0 ... 300 ppm |
| NO2 | 0 ... 100 ppm |
| SO2 | 0 ... 300 ppm |
| H2S | 0 ... 500, overload < 2.000 ppm |
Downloads
EN_Brochure_OPTIMA.pdf
PDF, 1 MB
4202EN-O_OPTIMA_USER_MANUAL.pdf
PDF, 11 MB
EN_Brochure_H2.pdf
PDF, 3 MB
