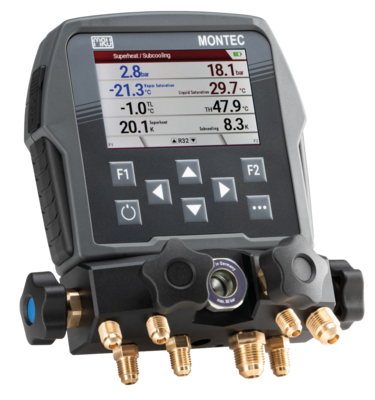

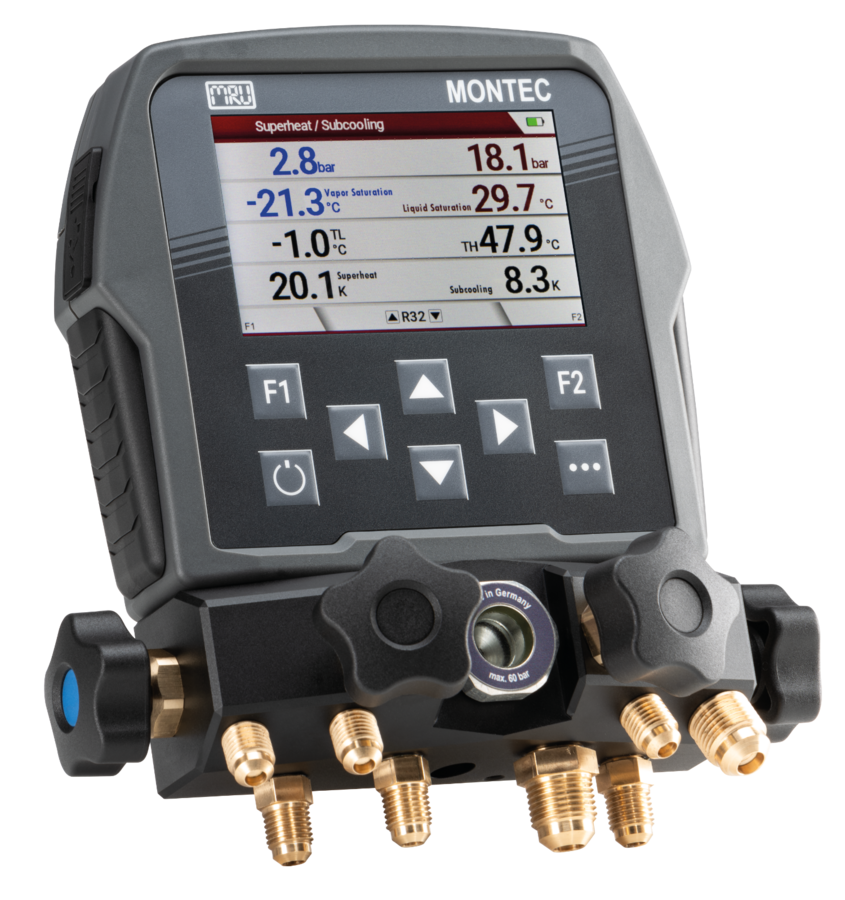

MONTEC Digital Manifold Digital for demanding refrigeration applications. For installation and servicing of heat pumps, refrigeration and air-conditioning systems.

Modern service calls today demand more than just pressure measurement. Increasing demands for efficiency, documentation and a variety of refrigerants require measurement technology that has been specifically developed for professional use. MONTEC supports technicians in the installation, maintenance and servicing of modern refrigeration, air-conditioning and heat pump systems – with digital measurement technology, a robust design and intuitive operation in the field.

Key features of the MONTEC

Designed for demanding refrigeration applications:
• Integrated, robust vacuum sensor
• Refrigerants A1, A2, A2L and A3 (non-Ex)
• High-capacity battery for extended measurement operation
• App for device and accessory control, software updates and measurement logs
• max. 50 bar

MONTEC - Digital Manifold for demanding refrigeration applications

Basic-Equipment

- Integrated, robust vacuum sensor
- Large 4" IPS-TFT graphic display for an optimal viewing angle
- Industrial keyboard, also suitable for use whilst wearing gloves
- Exceptionally robust, glass-fibre-reinforced housing with IP54 protection rating
- Very large data memory for numerous measurements
- Explicit approval for use with A3 - refrigerants
- Real glass sight glass
- Additional connection for 2x temperature clamps with Type K connection
- Convenient folding hook for attachment
- Option to fit an anti-theft device
- Suitable for applications up to 50 bar
- USB-C port including charging cable and mains adaptor
- Bluetooth

Technical Data

Measuring range

Refrigerant

R11, R12, R13, R22, R23, R32, R114, R123, R124, R125, R134A, R236FA, R245FA, R290, R401A, R401B, R402A, R402B, R403B, R404A, R406A, R407A, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R414B, R416A, R417A, R417C, R420A, R421A, R422A, R422B, R422C, R422D, R424A, R427A, R428A, R434A, R438A, R442A, R444B, R448A, R449A, R450A, R452A, R452B, R453A, R454A, R454B, R454C, R455A, R458A, R500, R502, R503, R507, R508B, R513A, R600, R600A, R601, R601A, R718, R744, R1233ZD(E), R1234YF, R1234ZE(E)

Dimensions and other data

Storage temperature	-20 ... +50° C
Protection	IP 54
Weight	1,75 kg
Power supply	100 - 240 V/ 5V DC / 1200 mA
Dimensions	W:190 mm, H: 108 mm, D: 89 mm
Battery operating time	>20h (brightness100%) >35h (brightness50%) >60h (Display off)
